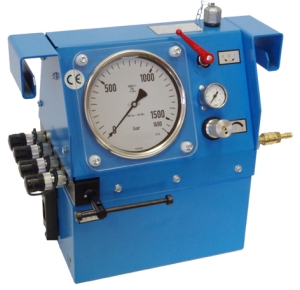

HD1500 High Pressure Hydraulic Power Pack

HD1500 High Pressure Hydraulic Power Pack

Application:

The portable HD 1500 is designed for delivering high hydraulic pressure up to 1500 bar required for operating hydraulic tools, especially hydraulic tools for loosening and tightening the clamping connections provided at large diesel engines.

Capacity:
hydraulic pressure up to 1500 bar.

Drive medium:
Compressed air with at least 6 bar.

Features:

The hydraulic pressure is adjustable up to 1500 bar.
Up to four hydraulic tools can be supplied simultaneously.

Specifications:

Operating pressure (compressed air), min. 6bar
Operating pressure (compressed air), max. 15bar
Working pressure (hydraulic oil), max. 1500 bar
Tank capacity (hydraulic oil) max. 7 Liter
Connection for compressed air Ø 9 mm
High pressure outlet 4x CEJN Serie 116
Dimensions:
Length 431 mm
Width 315 mm
Height 402 mm
Weight:
empty ca. 27 kg
filled ca. 32 kg
Technical changes reserved
