Reamer Type D

Adjustable Expanding Hand Reamers Type D

The adjustable standard reamer for repair and assembly jobs.

Description:

Right-hand cutting reamer with expanding blades.
Due to the unique Hunger relief grinding operation the blades have a progressively increasing clearance angle giving a soft cutting action.
Starting with size D 12 the adjusting nut is marked with an annular scale. One graduation of the scale corresponds to a change of the reamer diameter by 0,01 mm.
The reamers are fitted with blades made of high quality special steel to ensure superior cutting performance.

The production of reamers with hard chromium coated blades and of hard chromium coated replacement blades has been discontinued.
Remainders of stock are available as long as stock last.

Sizes:

Size Range of Adjustment Length Overall
L1 mm
Length Blades
L2 mm
Number
of Blades
Weight
kg
mm Inch
D 6,4 6,4 - 7,2 1/4 - 9/32 111 32 4 0,015
D 7,2 7,2 - 8 9/32 - 5/16 111 32 4 0,015
D 8 8 - 9 5/16 - 23/64 111 32 5 0,025
D 9 9 - 10 23/64 - 25/64 115 32 5 0,035
D 10 10 - 11 25/64 - 7/16 120 35 5 0,040
D 11 11 - 12 7/16 - 15/32 125 35 5 0,045
D 12 12 - 13,5 15/32 - 17/32 130 42 5 0,075
D 13,5 13,5 - 15,5 17/32 - 39/64 145 50 5 0,100
D 15,5 15,5 - 18 39/64 - 45/64 165 60 5 0,155
D 18 18 - 21 45/64 - 5364 180 65 5 0,225
D 21 21 - 24 53/64 - 15/16 190 70 5 0,320
D 24 24 - 27,5 15/16 - 1 5/64 205 75 5 0,430
D 27,5 27,5 - 31,5 1 5/64 - 1 15/64 225 80 6 0,600
D 31,5 31,5 - 37 1 15/64 - 1 29/64 240 90 6 0,870
D 37 37 - 45 1 29/64 - 1 49/64 285 100 6 1,410
D 45 45 - 55 1 49/64 - 2 5/32 320 109 6 2,320
D 55 55 - 65 2 5/32 - 2 9/16 350 120 8 3,830
D 65 65 - 80 2 9/16 - 3 5/32 460 145 10 6,800
D 80 80 - 95 3 5/32 - 3 47/64 490 150 10 10,250
D 95 95 - 110 347/64 - 4 21/64 490 150 10 13,700

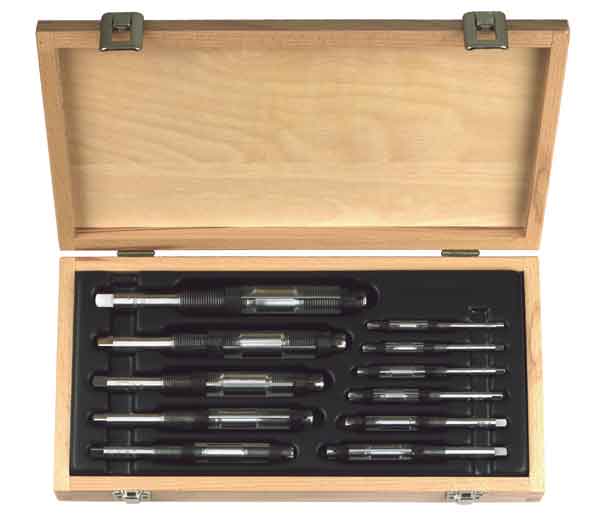

Sets of Reamers in Wooden Cases:

RA-D-Satz

Size Diameter Range Number
of Reamers
Weight
kg
mm Inch
DAN 8 - 31,5 21/64 - 1 15/64 11 3,100
DEN 8 - 45 21/64 - 1 49/64 13 5,700
