Clamping cylinder heads

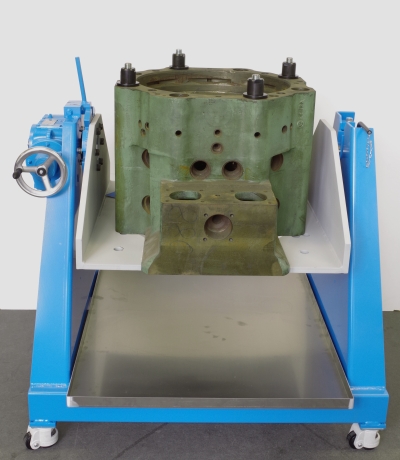

Cylinder Head Stand WV

Application:

Heavy cylinder heads of large diesel engines can be safely and easily clamped onto the extremely stable WV Cylinder Head Stand to perform maintenance and repair work.

If required, the WV can be also used for storing a spare cylinder head.

Features:

The cylinder head mounted on the WV Cylinder Head Stand can be rotated through 360° and locked in any position which is most suitable for the work to be performed.
A removeable tray provided in the bottom frame collects any liquid from the cylinder head.
Antivibration pads are provided at the bottom frame which are to be secured to the floor so that the stand cannot fall over when mounting and servicing the cylinder head.

Dimensions and Weight:

Lenght 1500mm
Width 1000mm
Height    1200mm
Net weight 385kg
standard version
